Various Angular Momenta and Magnetic Quantum Numbers

l=1,m=-1,+1

In the quantum mechanics, l and m values of the spherical harmonics Y[lm] are the angular momentum and magnetic momentum numbers. Here we show several spherical harmonics which have relatively small l values. The method is the same as the previous section --- express x,y,z by parameters u and v.

When m is odd, the spherical harmonics contains an imaginary part which comes from exp(-im phi) term. For m=-1 and 1, the function becomes as follows:

   Y[1,-1](t,p) =  sqrt(3/8pi) sin(t) exp(-i p)
   Y[1, 1](t,p) = -sqrt(3/8pi) sin(t) exp( i p)

|Y|^2 can be calculated easily by multiplying Y and its complex conjugate, and both above become the same function, Y(t)=3/8 pi sin^2(t). The complex conjugate function of the spherical harmonics can be given by the relation, (Y[l,m])^* = (-1)^m Y[l,-m].

gnuplot> set parametric

        dummy variable is t for curves, u/v for surfaces
gnuplot> set angle degree
gnuplot> set urange [0:360]
gnuplot> set vrange [-90:90]
gnuplot> set isosample 36,18
gnuplot> set ticslevel 0
gnuplot> set size 0.65,1.0
gnuplot> a=3.0/(8*pi)
gnuplot> fx(u,v)=cos(u)*cos(v)
gnuplot> fy(u,v)=sin(u)*cos(v)
gnuplot> fz(v)=sin(v)
gnuplot> g(v)=cos(v)*cos(v)
gnuplot> splot a*g(v)*fx(u,v),a*g(v)*fy(u,v),a*g(v)*fz(v)

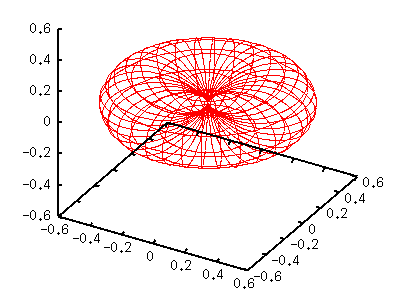

The left torus-shape figure is |Y[11]|^2. Since this function contains sin(t)=cos(v), we defined g(v)=cos(v)*cos(v) .

l=2,m=-2,-1,0,+1,+2

When l=2, there are 5 different functions those correspond to m=-2 to 2.

   Y[2,-2](t,p) =  sqrt(15/32pi) sin(t)sin(t) exp(-2i p)
   Y[2,-1](t,p) =  sqrt(15/8pi) sin(t)cos(t) exp(-i p)
   Y[2, 0](t,p) =  sqrt(5/16pi) (3cos(t)cos(t)-1)
   Y[2, 1](t,p) = -sqrt(15/8pi) sin(t)cos(t) exp( i p)
   Y[2, 2](t,p) =  sqrt(15/32pi) sin(t)sin(t) exp( 2i p)

Here we show the case of m=0,1,2. A function of negative m value is the same as that for |m|.

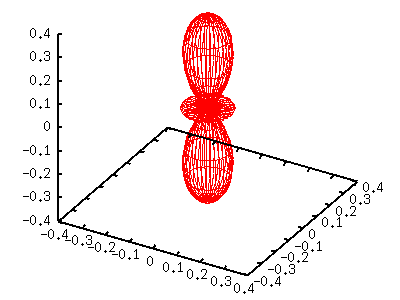

m=0

gnuplot> a= 5.0/(16*pi)
gnuplot> g(v)= (3*sin(v)*sin(v)-1)**2
gnuplot> splot a*g(v)*fx(u,v),a*g(v)*fy(u,v),a*g(v)*fz(v)

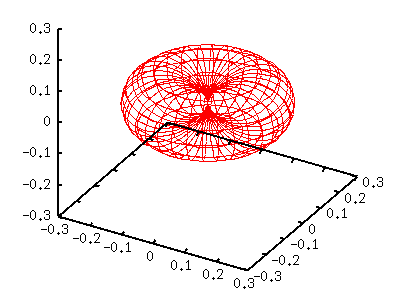

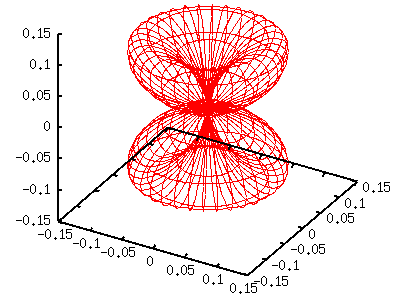

m=1

gnuplot> a=15.0/( 8*pi)
gnuplot> g(v)= (sin(v)*cos(v))**2
gnuplot> splot a*g(v)*fx(u,v),a*g(v)*fy(u,v),a*g(v)*fz(v)

m=2

gnuplot> a=15.0/(32*pi)
gnuplot> g(v)= (cos(v)*cos(v))**2
gnuplot> splot a*g(v)*fx(u,v),a*g(v)*fy(u,v),a*g(v)*fz(v)
